How To Identify Firmware Of A Dead China Tablet PC



You can easily identify firmware version of an Android Tablet by simply navigating to settings and selecting About Phone which can be found at the bottom of the settings options. So easy, right? But what if you’re tablet is dead, unable to boot, or stuck in logo boot loop? And the only way you could fix it is to flash it with its stock / factory firmware? How can you find where to get a copy of its firmware file if you don’t even know what firmware version to find?

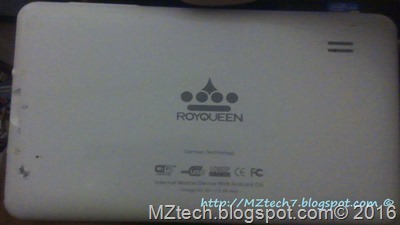

White RoyQueen Android Tablet
RoyQueen Android Tablet
“I had a 9 inch Royqueen German Technology PC Tablet running with Android OS which was stuck in boot logo. I did a hard reset but it didn’t fix the problem. I tried flashing it with a generic Android firmware since I couldn’t figure out its original version which made the problem worse. After flashing a wrong firmware, my Tablet is dead. It won’t turn on and all I could see is black screen. To fix it, I have to figure out its firmware version so I could start searching where I could get a copy of original firmware file.”



How To Identify Firmware Version Of A Dead Tablet?

  • Open the back case of the Tablet to see the motherboard and take note of its component.
Royqueen Tablet Motherboard
Royqueen Tablet Motherboard

  • Identify the processor IC (Integrated Circuit) chip and take note of its Brand name and Part No.
Allwinner A13 Processor Chipset
Allwinner A13 processor - Photo by Mztech

The processor chip in the photo is identified as Allwinner Technology for its brand name and A13 as its part number. Some other processor types you may find are:Allwinner Technology A10, A20, A23, A31Rockchip RK2818, RK3368MediaTek MT6572, MT6588, etc.

  • Find the build number or board number.
Motherboard Build Number
Royqueen tablet motherboard build number -  Photo by Mztech

Build Number or Board Number show the version number and the manufacturing date. The build number shown in the photo is identified as A91v02-20121005.
  • Find the Manufacturer Information.
Touch Screen Flex Part Number
Royqueen tablet Touchscreen Flex - Photo by Mztech


On some tablet, there is a logo of the manufacturer company imprinted in the motherboard. But in my case, I haven't found any. I have figured out my manufacturer information using the details printed in my touchscreen flex. Using these information, I have figured out that my manufacturer is Maixin-China.


All the information gathered is the key to identify the firmware version.


Firmware version: AllWinner 13 (A13) MAPAN MX913 A91V02 20121005


Where can you get a copy of your original firmware file?

Visit the Manufacturer’s Website of your device. You have to know the model name and model number of your device so you could download the correct firmware version.But if you have a PC tablet made in China, identifying its firmware version is a problem. They usually are re-branded and do not have a Manufacturer website. You could not find its firmware version written on in the device.


If you are able to identify your correct firmware version, you can search from this list if it is available to download.









To help you familiarize  more on different component, brand names, and part numbers , read my blog on:

tablet pc motherboard
Motherboard Component of China Tablet PC
